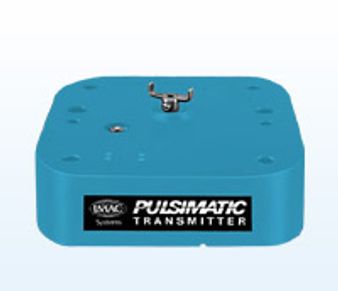

THE IMAC PULSIMATIC TRANSMITTER is the economical way to transmit uncorrected volume output data from gas meters to remote totalizing and recording equipment. Available in ten different pulse outputs to fill most requirements, the PULSIMATIC TRANSMITTER has a virtually indestructible low profile that does not interfere with existing piping arrangement.

The IMAC Pulsimatic Transmitter fits all types of industrial/commercial size gas meters with vertical mechanical index (Diaphragm / Turbine / Rotary). The Pulsimatic Transmitter also acts as a secondary source of count if the meter index fails. For residential/domestic meters please see our Domestic Meter Pulser.

Many different options are available; please consult the literature for more information.

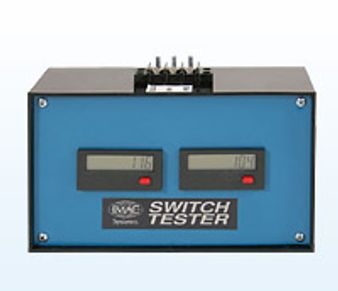

The IMAC switch tester is the ideal way to test switch performance.

• Accepts form A or form C inputs
• 6" x 3" x 2-/12" plastic case
• Contains 2-1000 Hz capacity resettable counters
• Extremely portable, easy to use, battery powered

IMAC's Switch Tester 2-

• ITRON ready
• Economic, compact, portable and toolbox ready
• Simple effective means for testing pulse outputs on Itron ready meters and instruments
• Use to verify pulse outputs vs. totalization
• High-resolution counters will detect up to 1000 pulses/second
• Detects 1 millisecond contact breaks
• Diagnoses switch flutter (bounce, dither)
• Resettable battery powered displays

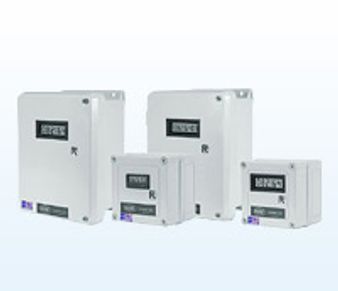

The IMAC Remote Totalizer line is an inexpensive way to remote read, totalize, normalize, standardize, and retransmit pulses or obtain an instantaneous flow rate. The products featured are all made in America by IMAC Systems, Inc.

R-1 Remote Totalizer: Pulse counter / totalizer

R-2 Remote Totalizer: Pulse counter / totalizer with divide capability to allow a 1 cu. Ft gas = 1 count with different common pulse outputs on meters (divide capability of 2, 10, and 100)

R-3 Remote Totalizer: Fixed Factor Totalizer: Allows fixed factor to be preset and normalize, standardize or convert measurement units. Also useful for fixed factor pressure conversion to show the corrected volume. Features a Form C relay for corrected pulse output.

R-4 Remote Totalizer: Remote Totalizer with flow rate indication and analog output. Designed for use with low frequency or high frequency input capabilities. 4-20mA output proportional to flow rate. Displays either volume or flow rate.

*All IMAC Systems, Inc. Remote Totalizers are enclosed in a NEMA 4 rated case.

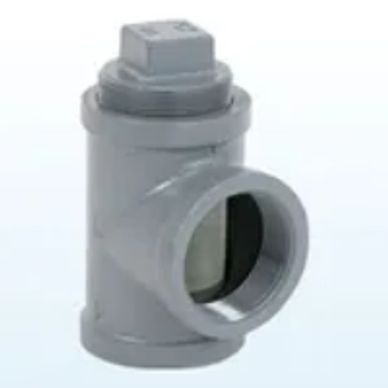

IMAC strainers act as the last line of defense, protecting expensive downstream equipment from dangerous line debris such as loose scale, weld beads, grit, and other damaging foreign material. Strainers are an inexpensive and highly effective way to prevent failures and damage to downstream equipment.

• Flanged or threaded options
• Small Profile
• 90° Angle Strainers
• Easily cleans by removing screen via the end cap and back flushing
• Screens are 100% stainless steel
• Seal gaskets made from a special polyvinyl with superior resilience
• Screen mesh available includes 20, 40, 60 (standard), 80, 100 and 120
• In stock and available in 2” thru 4” (other sizes available upon request)
• Available with Pete’s Plug or Pressure Gauge
• 100% Individually Pressure Tested

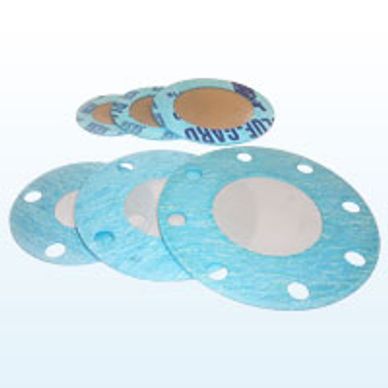

IMAC gasket strainers are the last line of defense, protecting expensive downstream equipment from dangerous line debris such as loose scale, weld beads, grit, and other damaging foreign material. Strainers are an inexpensive and highly effective way to prevent failures and damage to downstream equipment.

• Wafer construction, easy to install between 2 flanges (no extra space required)
• Available in full-face style or ring style (ANSI 150, ANSI 300 or ANSI 600)
• Serves as a functional gasket
• Gasket material is high quality Garlock 3000 asbestos free
• Screens are 100% stainless steel
• Screen mesh available includes 20, 40, 60 (standard), 80, 100 and 120

IMAC instrument filter dryers and cartridge refills provide cost effective instrument filtration for pneumatic controllers, heaters, enclosure systems, and other instruments. IMAC filter dryers accomplish filtration down to 4 microns and remove particles, moisture, H2S, odorant, and other impurities that can affect instrument performance.

Different assemblies are available that include pressure cuts (regulators), gas conditioning (catalytic heaters), automatic filter switching and drain valve.

• Pressure tested to 1.5x Maximum Capacity, then re-tested fully assembled to max capacity.
• Individually serial numbered and certified
• In-stock item
• Epoxy coated corrosion resistant housing
• Spin on type media canister easily replaced in the field
• Canisters are interchangeable with other manufacturers
• Models include (max capacity: 3000 cfh, maop 1500 PSIG): FD-19: Height: 6.5”, FD-4: Height: 13.5”, FD-5: Height: 20.5”

Low pressure options are available as well.

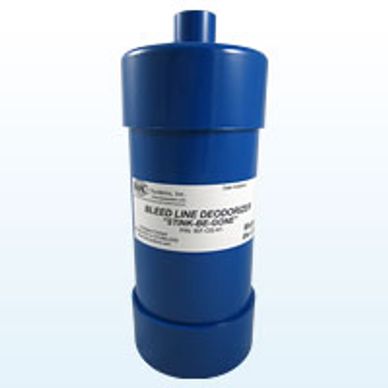

 IMAC Bleed Line Vent Deodorizers are disposable; atmospheric pressure, scrubbers meant for use on bleed lines of natural gas control instrumentation. The Bleed Line Vent Deodorizer installs on the vent port of control instrumentation that bleeds natural gas. The Activated Charcoal deodorizer removes odor from the natural gas helping to prevent leak call outs. This unit is designed for use on any system bleeding natural gas including pneumatic controllers, relief valves and regulators.

• ¼” ½” or ¾” Inlet Port
• In-Stock Item
• Disposable Unit
• Can be purchased in any quantity.
• Room to write installation or change-out date on label

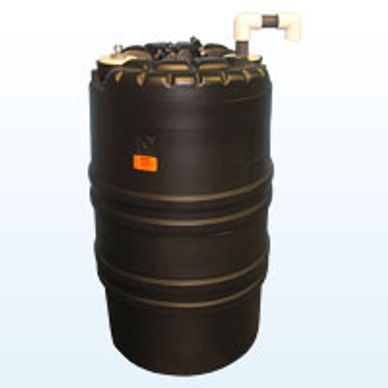

IMAC Odorant Tank Vent Scrubbers are high capacity, low pressure scrubbers designed for use on the breathing lines of odorant tanks. The odorant tank vent scrubber is an activated charcoal deodorizer designed to remove odorant from natural gas. The odorant tank vent-scrubbers come in a variety of sizes, interchangeable with most industry standards. The scrubbers main application is for deodorizing exhaust or breathing vents on odorization systems – to remove odor during filling, re-fill or normal operation.

• 15 Gallon, 35 Gallon and 55 Gallon Standard (other sizes available upon request)
• In-Stock Item
• Optional Vent Assemblies
• 35 and 55 Gallon designed with condensate collection area
• 15 Gallon – Standard Inlet = ½” Swagelock Fitting
• 35 and 55 Gallon –Inlet = 1” or 2” NPT PVC

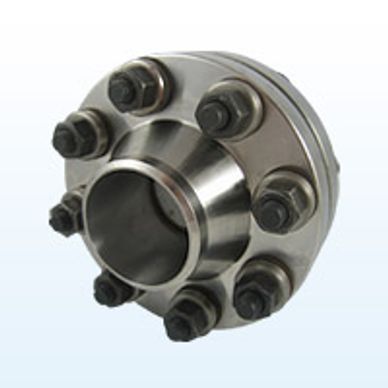

IMAC Barlow Insulating Joints are welded in place for a permanent solution. They are tested and ready for installation.

Why Barlow Insulating Joints?

1. Preassembly eliminates kits, so no field assembly is required

2. Controlled assembly and pretesting eliminate adjustments and guarantees performance

3. Mechanical design resists the effects of stress and the resulting insulation failure

4. Every joint has stringent quality control, traceable with a unique, permanently marked serial number

5. Each joint provided with a certificate of testing

These Barlow joints are designed to the highest standards. For more details download the Barlow PDF below.

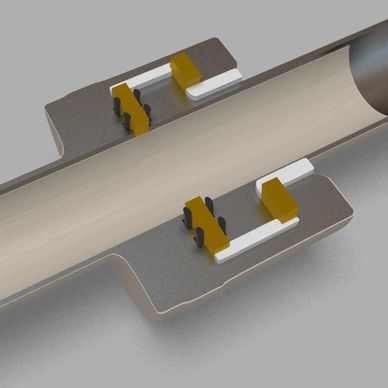

IMAC ALFA Monolithic Isolation Joints provide a positive leak-proof, long-lasting block against the flow of electric current in piping systems.

Why ALFA Monolithic Joints?

1. Over 30 years of experience in engineering and manufacturing monolithic joints

2. Factory manufactured and tested, so no field assembly is required

3. Mechanical design resists the effects of stress and the resulting insulation failure

4. Every joint has stringent quality control

5. Simplified serviceability and maintenance

6. Designed for considerable external loads (bending/torsion/axial) in addition to internal pressure

7. High safety design factor

For more details on sizing and additional options, download the ALFA PDF below.

Control Equipment Sales is here to help you navigate IMAC's existing product lines and custom machine shop solutions.

IMAC uses CAD/CNC and manufacturing technologies to provide our customers with quality precision machining. With full time engineers on staff we are capable of reverse engineering complicated parts and assemblies.

IMAC is capable of manufacturing precision components and assemblies using CNC turning, milling, multi-axis mill turning, grinding and other processes. Our precision quality is superb because of our experience in the aviation industry.

We serve a wide range of customers and are willing to do any size job, none to big or small.
